This page will contain some modifications to QMX+ by enthusiastic owners! Any modifications will be risky! So bear that in mind, while you contemplate...

Contents:

Battery and Audio board by Necati TA7MNA
Battery, Audio and ATU board by Sardar AC8L
Protective cover for the QMX+ which also doubles as a stand and storage! by Carl SA0CVK


Battery and Audio board by Necati TA7MNA

3-4 weeks ago me and my father Özkan (TA7OZX) made the exact board crudely onto a perfboard and it works like a charm then we got the idea to design a PCB to make it easier to assemble. At first I was going to design a suitable BMS and audio circuit and order with PCBA but due to chip shortages in JLCPCB I was forced to use the exact modules I used first.

I assembled the PCB in holiday and it works like a charm. I gave six boards to the other amateurs I know and they loved it and probably they will start to use it soon in outdoor activities.

Here is the github link: https://github.com/laxdronum/QMX-Plus-Battery-and-Audio-Board

1.jpg 2.jpg 3.jpg

3D_Back.jpg 3D_Front.jpg 4.jpg

5.jpg Schematic.jpg

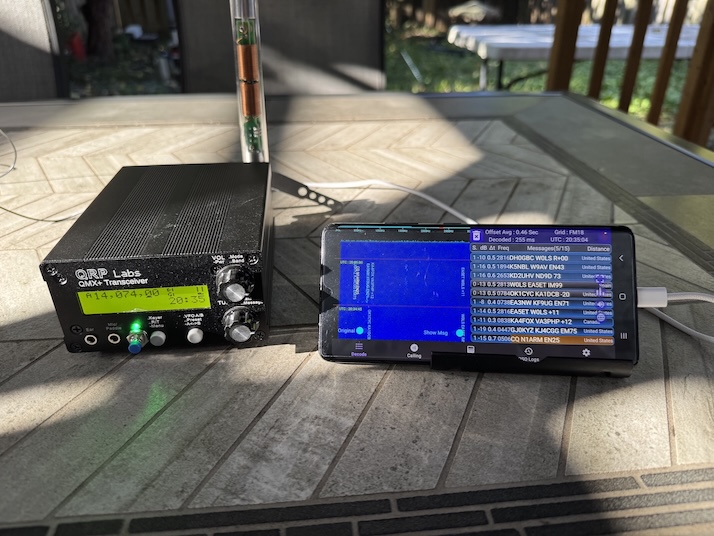

Battery, ATU and Speaker board by Sardar AC8L

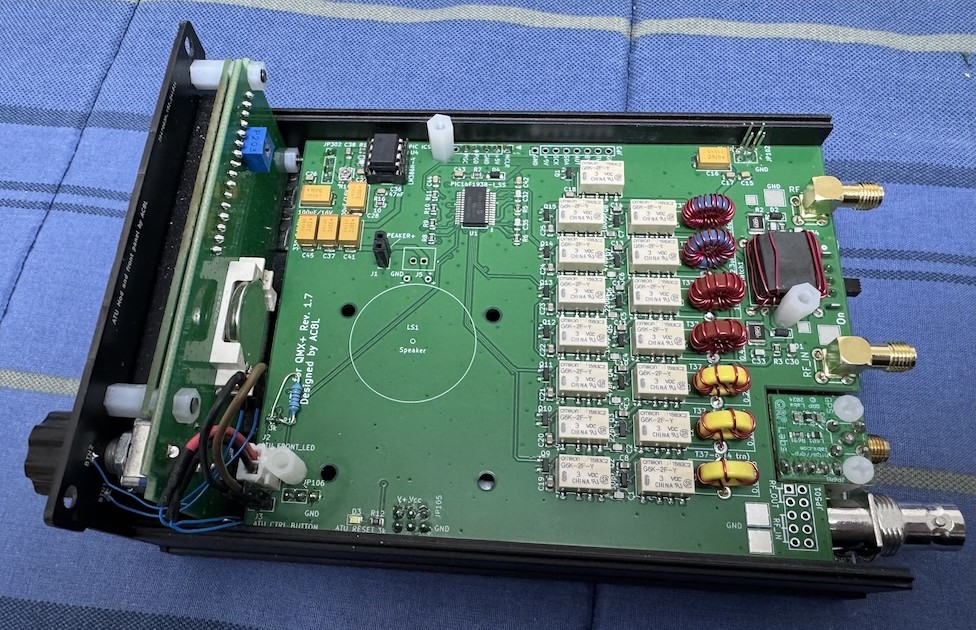

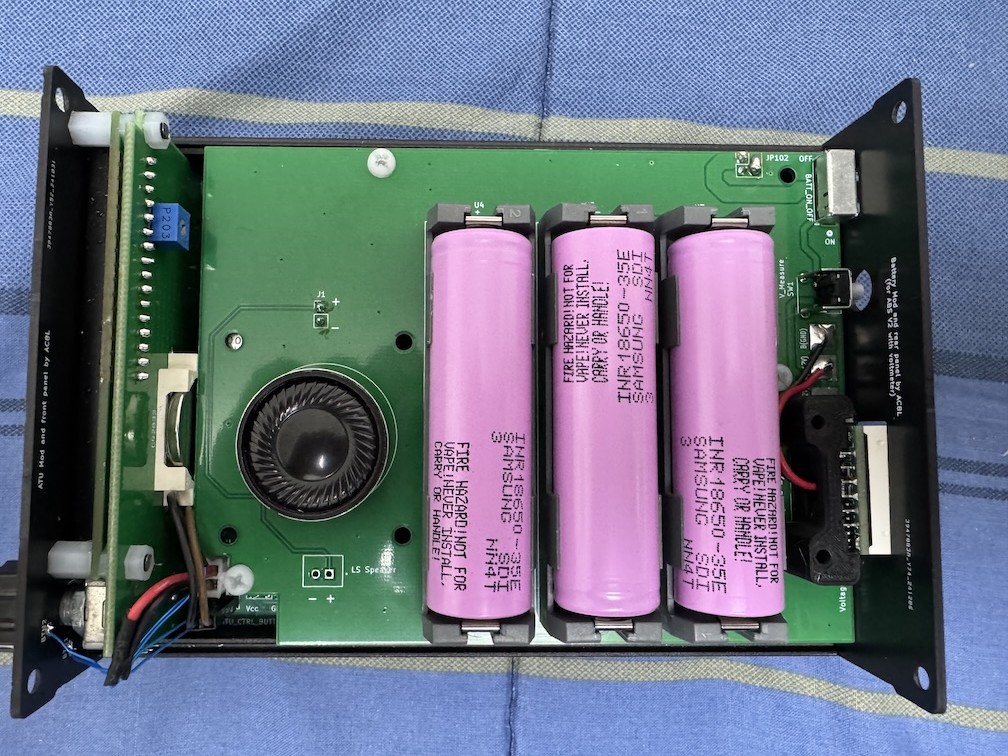

Companion PCB's to add ATU, internal battery with charger and a speaker to QRP Labs QMX+ transceiver. Please see github link for lots more information: https://github.com/AC8L/QMX_Plus_Autotuner_Internal_Battery_Speaker

IMG_1172.jpeg IMG_1413.jpeg IMG_1554.jpeg


Protective cover for the QMX+ which also doubles as a stand and storage! by Carl SA0CVK

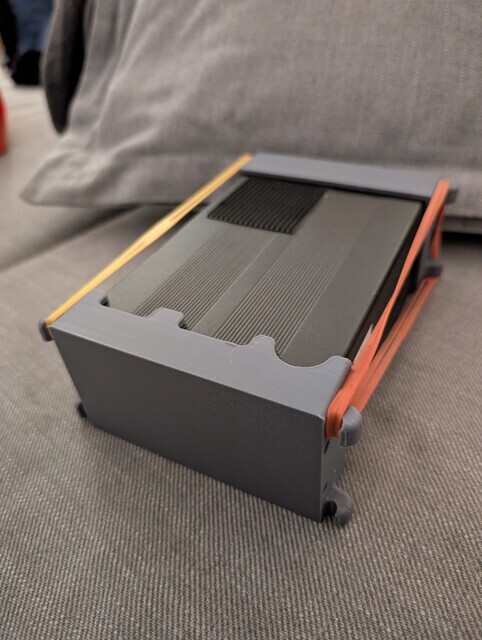

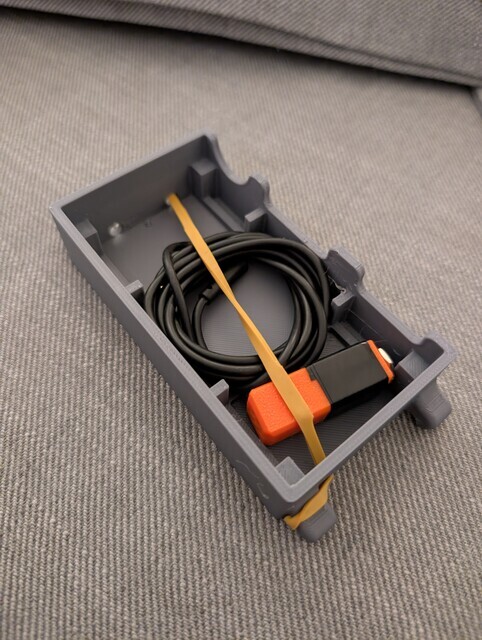

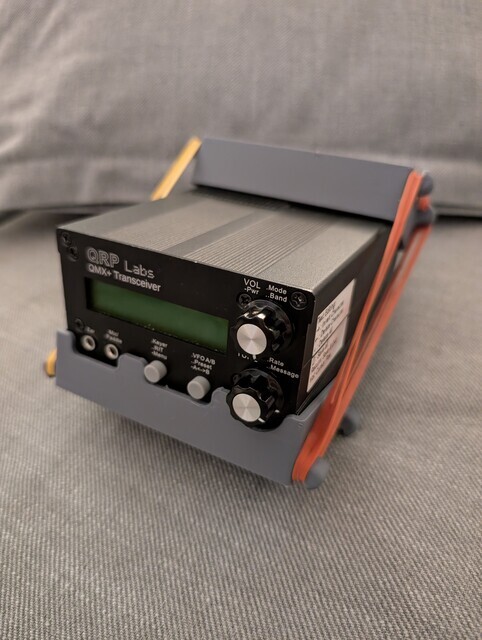

I've been thinking about a good cover for the QMX+ since i pack very compact, but don't want my QMX+ frontpanel to be destroyed. So i came up with the 3D-model below. I'd love if you like the model and come with suggestions. I am open to modify or add versions as needed!
https://www.printables.com/model/1300629-qmx-frontcover-stand-and-storage
The panels are all dual-sided and can be put on the front or back of the QMX+.

1.jpg 2.jpg 3.jpg
